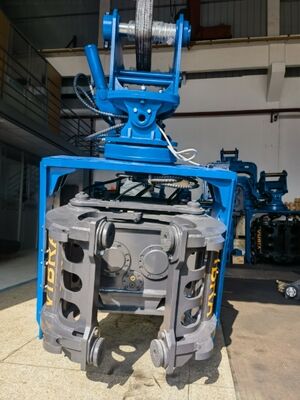

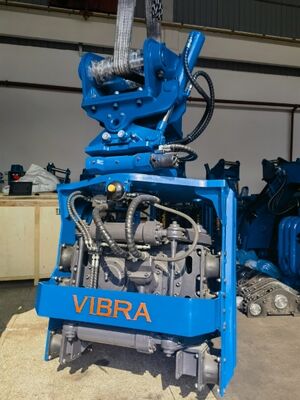

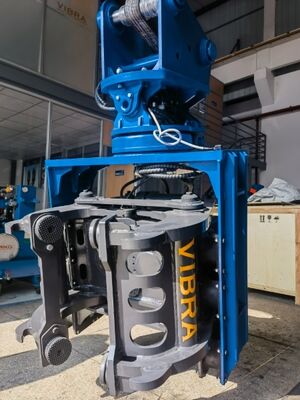

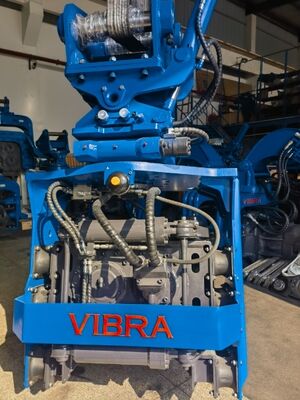

SV-200 Versatile Side Grip Pile Driver with 360° Rotation & Bidirectional Tilt – Designed for 20–25 Ton Excavators
Thông tin chi tiết sản phẩm
| Khoảnh khắc lập dị | 4,6 kg·m | Lực ly tâm | 459 kn |
|---|---|---|---|
| Dải tần số | 2300 – 3000 vòng/phút | Kẹp bên | 335 KN |
| Lực kẹp đáy | 385 KN | Máy xúc được đề xuất | 20 – 25 tấn |
| Làm nổi bật | Side Grip Pile Driver for excavators,360° rotation pile driver,Bidirectional tilt pile driver |
||
Mô tả sản phẩm
SV-200 Versatile Side Grip Pile Driver with 360° Rotation & Bidirectional Tilt – Designed for 20–25 Ton Excavators
Product Keywords
Side Grip Pile Driver, Hydraulic Vibratory Hammer, Excavator Mounted Pile Driver, Sheet Pile Driver, Low Clearance Piling Equipment
Product Overview
The SV-200 Side Grip Pile Driver is a specialized hydraulic attachment designed to transform standard 20–25 ton excavators into high-performance piling machines. As a leading solution from a reliable manufacturer with integrated factory and trade capabilities, this model combines powerful vibration technology with exceptional maneuverability. It is engineered to handle clamping, positioning, driving, and extraction of steel sheet piles, H-beams, and circular pipe piles in a single, seamless operation—eliminating the need for cranes or auxiliary equipment.
Key Features
| Feature | Description |
|---|---|
| 360° Rotation & ±30° Side Tilt | Full rotational capability combined with bidirectional tilt allows precise pile positioning in confined spaces, low headroom areas, and challenging job site angles. |
| Dual Clamping System | Equipped with both side clamp (335kN) and bottom clamp (385kN) for secure pile gripping throughout the entire driving and extraction process. |
| Multi-Pile Compatibility | Replaceable standard clamp seat interface enables quick switching between steel sheet piles, H-shaped steel, and circular pipe piles. |
| Low-Clearance Design | Specially developed for factory, bridge, basement, and other construction environments where height is restricted. |
| Simple Excavator Adaptation | Minimal modification required to mount on standard 20–25 ton excavators, reducing installation time and cost. |
| Integrated Workflow | One device completes clamping, positioning, driving, and extraction without requiring additional machinery or labor. |
Product Advantages
-
Maximised Job Site Efficiency
By combining multiple functions into one attachment, the SV-200 significantly reduces equipment mobilization time and on-site complexity. Operators can perform complete piling cycles without repositioning cranes or waiting for auxiliary equipment.
-
Superior Adaptability for Emerging Markets
Designed to meet the diverse geological and infrastructural conditions found in Southeast Asia, India, and Russia, the SV-200 performs reliably in both soft soils and dense ground conditions. Its compact footprint makes it ideal for urban construction and infrastructure projects where space is limited.
-
Reduced Total Cost of Ownership
As a factory-integrated manufacturer, we ensure competitive pricing without compromising on quality. The robust construction, easily replaceable wear parts, and straightforward maintenance schedule translate into lower operating costs and extended service life.
-
Enhanced Safety & Precision
The combination of 360° rotation and ±30° side tilt allows operators to position piles accurately from a safe distance, minimizing the risk of accidents associated with crane-assisted piling methods.
-
Fast Return on Investment
With its ability to convert an existing excavator into a specialized piling rig, the SV-200 eliminates the need to purchase dedicated piling equipment, offering an exceptional ROI for contractors and rental companies.
Technical Parameters – SV-200
| Parameter | Specification |
|---|---|
| Model | SV-200 |
| Eccentric Moment | 4.6 kg·m |
| Centrifugal Force | 459 kN |
| Frequency Range | 2300 – 3000 rpm |
| Side Clamp Force | 335 kN |
| Bottom Clamp Force | 385 kN |
| Operating Pressure | 32 MPa |
| Operating Flow | 170 – 230 L/min |
| Rotation / Tilt Angle | 360° / ±30° |
| Dimensions (L*W*H) | 1220 * 1260 * 2150 mm |
| Weight (with connector & clamp) | 2280 kg |
| Recommended Excavator | 20 – 25 tons |
Frequently Asked Questions (FAQ)
Q1: What types of piles can the SV-200 handle?
A: The SV-200 is compatible with steel sheet piles, H-shaped steel beams, and circular pipe piles through its interchangeable clamp seat system. Switching between pile types takes minimal time.
Q2: Does it require major modifications to my excavator?
A: No. The SV-200 is designed for simple adaptation to standard 20–25 ton excavators. The installation process is straightforward and can be completed by local service teams with basic hydraulic knowledge.
Q3: Can it work in low headroom conditions?
A: Yes. The side grip configuration and compact height allow operation in spaces with restricted vertical clearance, such as under bridges, inside factories, and in basement construction.
Q4: What after-sales support do you provide for markets like India, Russia, or Southeast Asia?
A: As a manufacturer with direct factory support, we provide technical documentation, remote troubleshooting, and spare parts supply. We can also arrange on-site training or service support through our partner network upon request.
Q5: Is one unit sufficient for both driving and extraction?
A: Absolutely. The SV-200 is designed to perform both driving and extraction operations without changing attachments or requiring additional equipment, making it a true all-in-one solution.
Q6: What is the typical delivery time for export orders?
A: Standard delivery is 30–45 days after order confirmation. We also maintain limited stock for urgent requirements. Please contact our sales team for current lead times.
Why Choose Us
As a factory-integrated manufacturer, we combine engineering expertise with direct production capabilities. This allows us to offer:
-
Consistent quality control throughout manufacturing
-
Competitive factory-direct pricing
-
Customization options for specific regional requirements
-
Reliable spare parts availability and technical support
Our SV-200 Side Grip Pile Driver is already serving contractors and rental fleets across Southeast Asia, India, and Russia, earning recognition for its durability, efficiency, and ease of operation.
